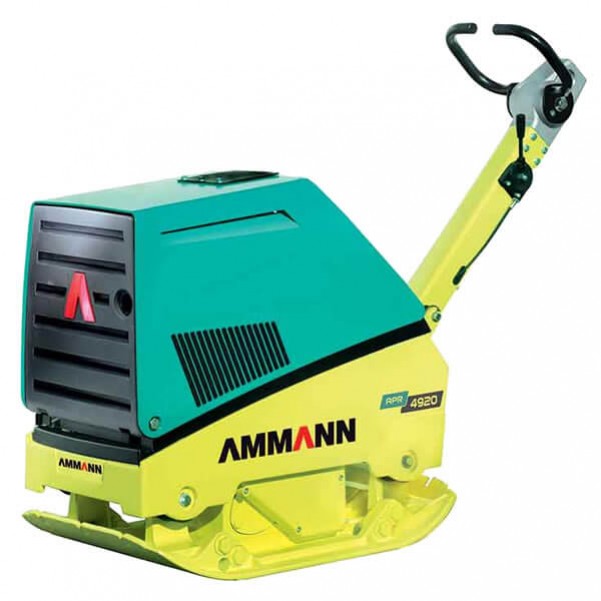

AMMANN APR4920 - 9 HP/6.6 kW Diesel Reversible Vibratory Plate
Freight Note*: For freight costings on this product Please request a quote via our "Ask A Question" function above.
Features:
- Operator friendly, vibration-cushioned guide handle that is foldable for easy transportation
- Smooth variable hydrostatic forward and reverse motion including the possibility for “on-the-spot” vibration
- Easy, ergonomic handling
- Maintenance friendly two-shaft exciter unit with long service intervals and lifetime
- Wear-resistant, self-cleaning base plate
- Well-protected, robust centrifugal clutch with wear-resistant V belt
- Powerful petrol or diesel engine
- Other options include a rubber mat for asphalt paver applications, hour meter and an electric starter
Specifications:
- Weights & Dimensions
- Machine weight : 391 kg
- with extension plates 75 mm: 413 kg
- with extension plates 150 mm: 424 kg
- A = Base plate length: 450 mm
- B = Machine length: 898 mm
- C = with handle: 1485 mm
- D = Machine heigth: 817 mm
- E = Handle height (work): 1000 mm
- F = Handle height (transport): 1285 mm
- G = Machine width: 450 mm
- Engine
- Engine : Hatz 1B40
- Fuel: Diesel
- Engine Output: 9 HP / 6.6 kW
- At RPM: 2900
- Fuel consumption: 1.6 l/h
- Compaction Forces
- Max, Vibration frequency: 65 Hz
- Max, Centrifugal force: 49 kN
- Working surface: 835 m2/h
- with extension plates 75 mm: 1115 m2/h
- with extension plates 150 mm: 1395 m2/h
- Max, compaction depth *: 60 cm
- Miscellaneous
- Speed: 0-35 m/min
- Fuel tank : 5 L
- Gradeability: 30%
- Max, incline to all sides: 25°
