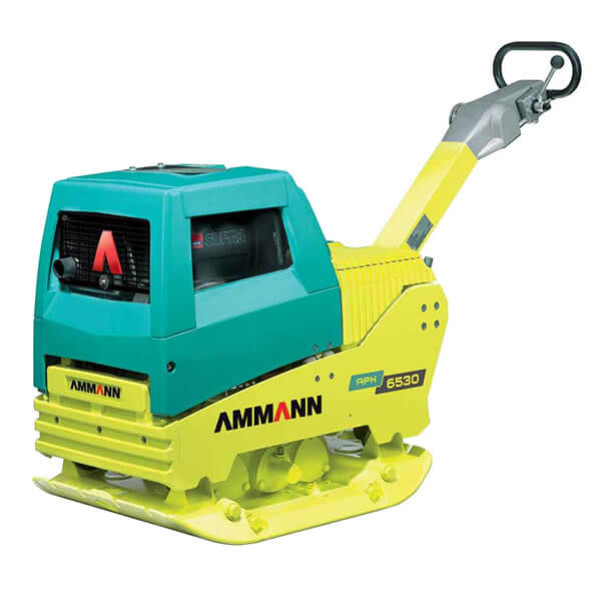

AMMANN APH6530 - 13.5 HP / 10 kW Diesel Hydrostatic Vibratory Plate
Freight Note*
For freight costings on this product Please request a quote via our "Ask A Question" function above.
The APH 6530 is powerful climber that delivers compaction force every step of the way.
The 6530 is equipped with the market-leading Ammann three-shaft exciter system, which not only enables performance and climbing ability but also makes the machines more responsive and easier to turn.
The APH 6530 weighs in at 491 kg. Several options, such as an electric starter, extension plates, operation hour meter and dead man’s handle allow for customisation to make the plate fit your particular needs.
Features:
- Hydrostatic three-shaft exciter system for power and climbing
- Air-cooled Hatz diesel engine with low oil pressure protection system
- Hydraulic pump for hydrostatic drive and steering; no V belt required
- Ergonomic guide handle with hydrostatic orbital steering
- Easy access to all service points
- Optimised base plate for well-balanced operation
- Available with with ACEecon compaction control system
Specifications:
- Weights & Dimensions:
- Machine weight basic unit: 491 kg
- With extension plates 75 mm: 515 kg
- With extension plates 150 mm: 527 kg
- A = Base plate length: 470 mm
- B = Machine length: 930 mm
- C = with handle: 1840 mm
- D = Machine heigth: 870 mm
- E = Handle height (work): 1000 mm
- F = Handle height (transport): 1500 mm
- G = Machine width: 550 mm
- H = with extension plates: 700/850 mm
- Engine
- Engine: Hatz 1D81S
- Fuel: Diesel
- Engine Output: 13.5 HP / 10 kW
- At RPM: 3000
- Fuel consumption: 2.5 l/h
- Compaction Forces
- Max, Vibration frequency: 55 Hz
- Max, Centrifugal force: 65 kN
- Working surface basic unit: 1056 m2/h
- With extensions: 1344/1632 m2/h
- Max. compaction depth *: 90 cm
- Miscellaneous
- Speed: 32 m/min
- Tank capacity: 7 L
- Gradeability: 0.36
- Max. incline to all sides: 30°
