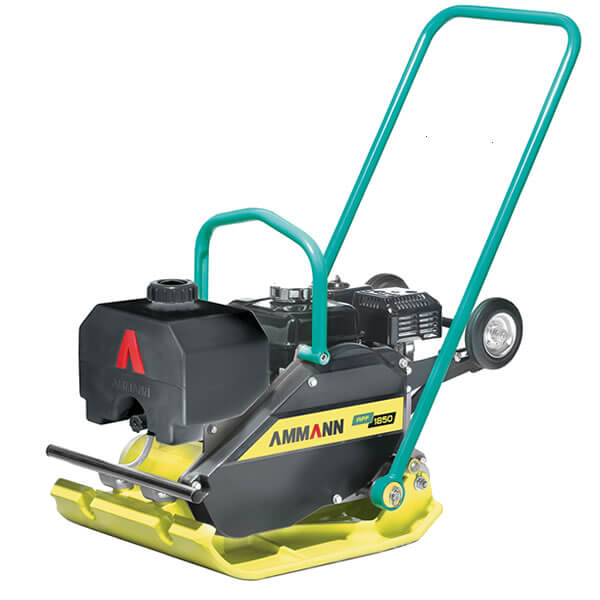

AMMANN APF1850 - Petrol Forward Moving Vibratory Plate

AMMANN APF1850 - Petrol Forward Moving Vibratory Plate

Freight Note*

For freight costings on this product Please request a quote via our "Ask A Question" function above.

The APF 1850 is considered the “all-around” forward-moving plate. It has size with powerful Honda or Hatz engines that enable quality performances on soil, gravel, paving stones, asphalt and other surfaces.

The continuously adjustable vibration also helps with compaction on varied surfaces. The guide handle can be folded, making for easy transport.

Features:

  • Operator friendly with low-vibration guide handle.
  • Well-protected, robust centrifugal clutch with wear resistant V belt.
  • Service friendly exciter unit with long lifetime.
  • Robust protective frame with central lifting point.
  • Powerful petrol or diesel engine.
  • Wear-resistant, self-cleaning base plate.
  • Options include permanent transport wheels, a water sprinkler system for work on bituminous surfaces and a rubber mat for work on paving stones.

Specifications:

  • Weights & Dimensions:
    • Machine weight:  95 kg
    • A = Base plate length: 398 mm
    • B = Machine length: 615 mm
    • C = Machine height: 623 mm
    • D = with handle (work): 1000 mm
    • E = with handle (transport): 1100 mm
    • F = Machine width: 500 mm
  • Engine
    • Engine: Honda GX 160
    • Fuel: Petrol
    • Engine Output: 5 HP
    • At RPM: 3200
  • Compaction Forces
    • Max. Vibration frequency: 85 Hz
    • Max. Centrifugal force: 18 kN
    • Working surface: 0.2 m2
    • Max. compaction depth *: 20 cm
  • Speed: 20 m/min
