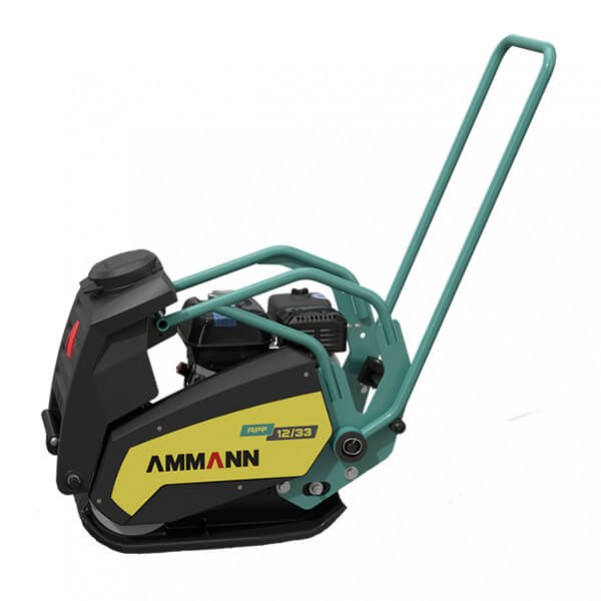

Ammann APF 12/33 - 2.9 kW (4 HP) 100 Hz Petrol Forward Moving Vibratory Plate
Freight:
-
This is a heavy and large item, freight might vary from different locations, please contact us by email or phone us on (07) 3326 1555 for a more accurate shipping quote and/or any special shipping arrangements you may require.
Delivery:
-
This heavy item is more than 70 kg, please make sure you have the lifting device to load. Otherwise, please order a Hydraulic Tail Lift Service in the Optional accessories section. Thanks.
Features:
- Simple operation- Operator safety with low HAV levels (below 2.5 m/sec²)
- Generously sized, powerful exciter unit
- Leading compaction power, speed, climbing ability and machine life
- Compact dimensions allow use on sites with limited space
- Maintenance-free exciter system
- Full engine protection frame
- Toolless daily maintenance
- Base plate that is self cleaning and wear resistant
Specifications:
- Weights & Dimensions:
- Machine weight: 68 kg
- A = Base plate length: 536 mm
- B = Machine length: 776 mm
- C = Machine height: 568 mm
- D = with handle (work): 1000 mm
- E = with handle (transport): 1000 mm
- F = Machine width: 330 mm
- Engine:
- Engine:Honda GX 120
- Fuel: Petrol
- Engine Output: 2.9 kW (4 PS)
- at RPM: 3600
- Compaction Force:
- Max. Vibration frequency: 100 Hz
- Max. Centrifugal force: 12 kN
- Working surface: up to 396 m²/h
- Spec. Surface pressure: 8.1 N/cm²
- Miscellaneous
- Hand-arm Vibration on Handle: <2.5 m/s²
- Speed: 0–20 m/min
- Gradeability: 30%
- Max. incline to all sides: 20°
- Options:
- Rubber mat: –
- Transport wheels: –
- Water Sprinkler System: 8 l
- Hour Meter: x
