AMMANN ACR70D - 4.3 HP / 3.2 kW Diesel Rammer
Freight Note*: For freight costings on this product Please request a quote via our "Ask A Question" function above.

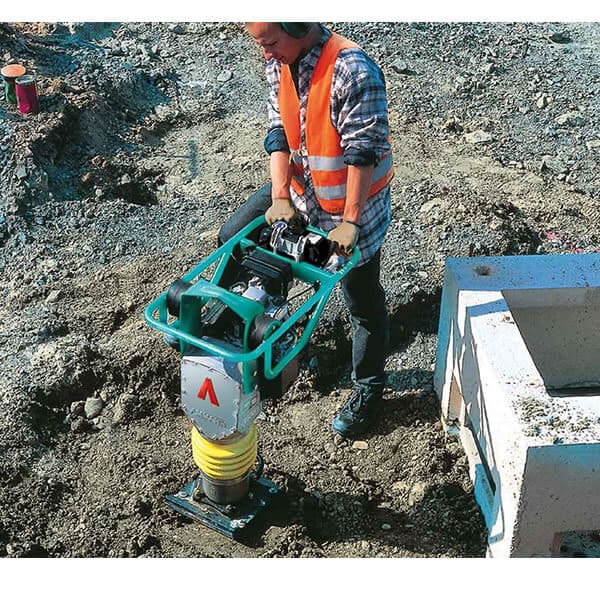

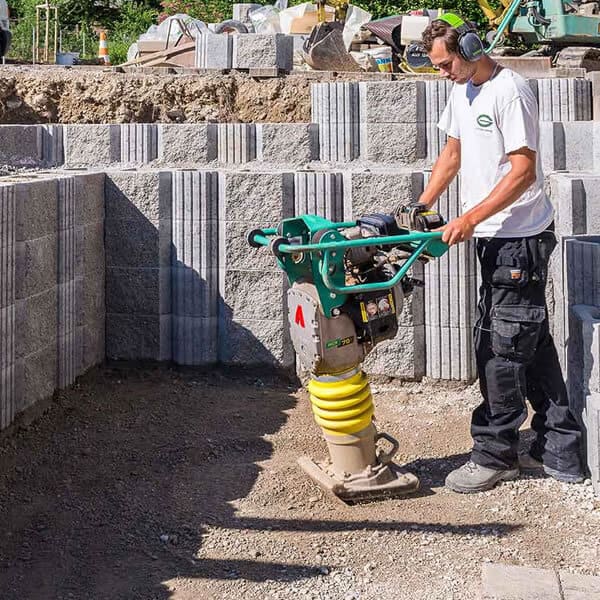

The ACR 70D provides the most rammer weight, at 83 kg. It utilises a YANMAR L48 diesel engine that is popular with contractors who prefer light equipment with diesel engines – and of course want power, too.
The rammer features an adjustable, vibration-resistant handle that helps fight fatigue and keep the operator focused throughout a shift.
The added weight combined with the low centre of gravity and the YANMAR engine provide plenty of compaction pop.
Features:
- Best-in-class drive
- Sure-grip, vibration-insulated guide handle for fatigue-free operation
- Corrosion-free fuel tank
- Powerful and robust single-spring system
- Easily accessible recoil starter
- Throttle adjustment with automatic idle
- Robust crank drive
- Wear-resistant ramming shoe made of high quality plastic with integrated steel plate
- Additional rollers and grips for easy loading and unloading
Specifications:
- Weights & Dimensions:
- Machine weight: 83 kg
- Foot lenght: 340 mm
- Foot width: 280 mm
- Handle lenght: 770 mm
- Machine height: 980 mm
- Handle width: 360 mm
- Engine :
- Engine: Yanmar L48 AE
- Fuel: Diesel
- Engine Output: 4.3 HP / 3.2 kW
- at RPM: 3250
- Compaction Forces
- Percussion rate: 730 bpm
- Stroke height: 60 mm
- Centrifugal force: 16 kN
- Surface capacity: 210 m2/h
- max. compaction performance*: 60 cm
- Miscellaneous
- Fuel tank capacity: 2.5 l
- Travel speed: 12 m/min
- Optional foot sizes width: 230–260–330–400 mm
