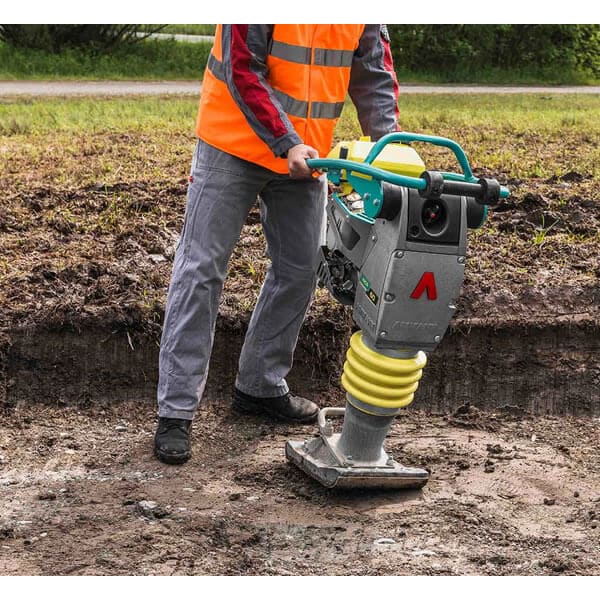

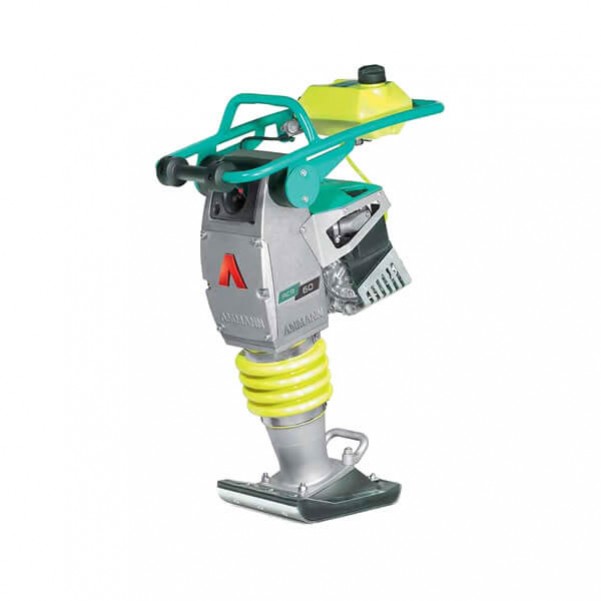

AMMANN ACR60 - 4-Stroke Petrol Engine Rammer

AMMANN ACR60 - 4-Stroke Petrol Engine Rammer

Freight Note*

For freight costings on this product Please request a quote via our "Ask A Question" function above.

Please leave your postcode so we can insure the best value freight costs to your location.

The ACR 60 is the lightest of the Ammann Rammers, with a weight of 62 kg. It is used when a little less weight is sufficient – especially in particularly tight spaces.

Like all Ammann Rammers, the handle is key to the success of the ACR 60. It offers high production while limiting the vibration levels that reach the operator and, of course, enables maneuverability.

The rammer is equipped with a Honda GX100, 4-stroke petrol engine that is powerful and also prevents fluid spills when on steep grades. The engine meets all global emission standards.

Features:

  • Best-in-class drive
  • Voluminous air filter with self-cleaning feature that when combined with optional cyclone pre-filter extends service intervals to five times that of some competitors
  • Sure-grip, vibration-insulated guide handle for fatigue-free operation
  • Patented height reduction of approximately 10cm using adapter plate option

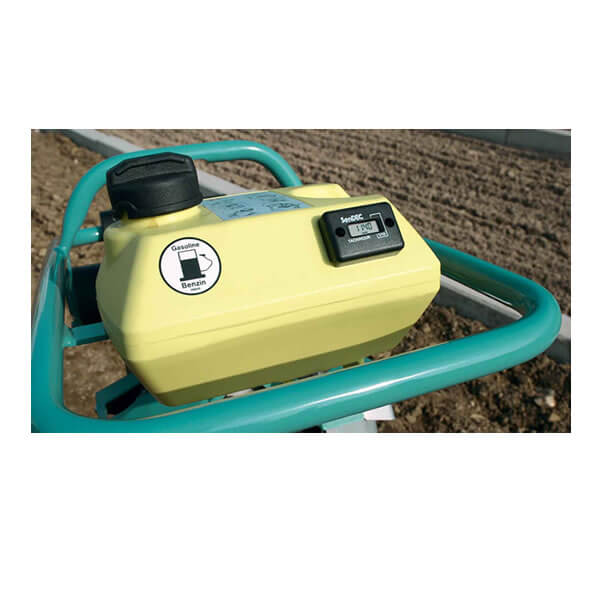

  • Corrosion-free fuel tank
  • Standard 280mm foot, with seven sizes available including an asymmetric option for compaction along walls and curbs
  • Powerful and robust single-spring system
  • Easily accessible recoil starter
  • Throttle adjustment with automatic idle
  • Robust crank drive
  • Wear-resistant ramming shoe made of high quality plastic with integrated steel plate

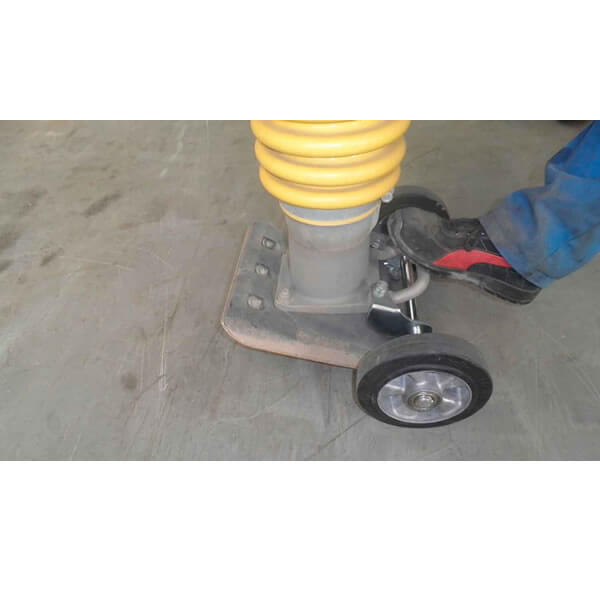

  • Additional rollers and grips for easy loading and unloading

Specifications:

  • Weights & Dimensions
    • Machine weight: 62 kg
    • Foot lenght: 340 mm
    • Foot width: 280 mm
    • Handle length: 710 mm
    • Machine height: 1020 mm
    • Handle width: 355 mm
  • Engine
    •  Engine: Honda GX 100 / Honda GXR 120
    •  Fuel: Petrol
    •  Engine Output :  2.2 kW (3 HP) / 2.7 kW (3.7 HP)
    •  at RPM: 4300
  • Compaction Forces
    • Percussion rate: 680 bpm
    • Stroke height: 65 mm
    • Centrifugal force: 11.5 kN
    • Surface capacity: 225 m2/h
    • Max. compaction performance*: 45 cm
  • Miscellaneous
    • Fuel tank capacity: 3.2 l
    • Travel speed: 13.5 m/min
    • Optional foot sizes width: 165–200–230–330–400 mm
