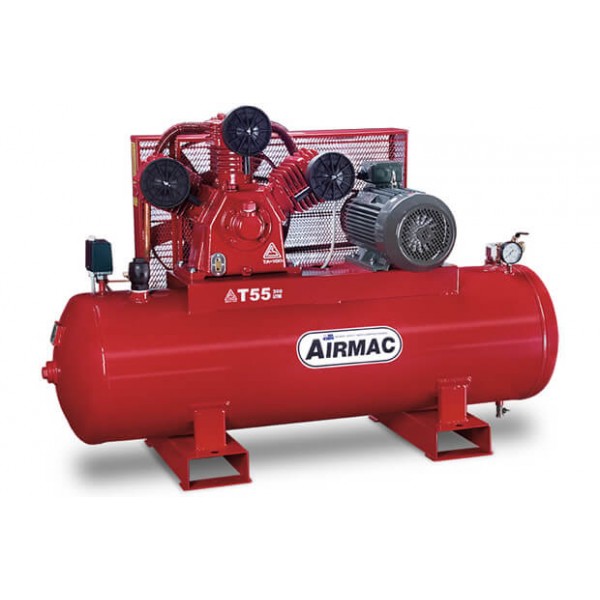

Airmac T55 52.3cfm 3 Phase 415V 300L Tank Air Compressor
Freight:
This item is a heavy and large item, freight might vary from different location, please contact us at Email or phone us on (07) 3326 1555 for a more accurate shipping quote and/or any special shipping arrangements you may require.
Delivery:
This is a heavy item more than 30 kg, please make sure you have the lifting device to load. Otherwise, please order a Hydraulic Tail Lift Service in the accessory section. Thanks.
PLEASE NOTE: For 415V 3 Phase machines you will need to get an electrician to connect machine. Plug & lead not included.
Specifications:
| Motor Power | 7.5 kW (10 hp) |
| Pump Displacement | 1,510 L/min (53.4 cfm) |
| Free Air Delivery | 1,245 L/min (44.0 cfm) |
| Maximum Pressure | 1,000 kPa (145 psi) |
| Tank Volume | 300 Litres |
| Pump Model | Fusheng TA-100 |
| Pump Speed | 915 rpm |
| Current Draw | 16.1 Amps |
Compare to other models:
| Model | V25 | T30 | V40 | T55 | T75 |
| Pump Displacement (Litre/min) | 600 | 781 | 1041 | 1510 | 2086 |
| Free Air Delivery (Litre/min) | 447 | 604 | 777 | 1245 | 1729 |
| No. of Cyl. | 2 | 3 | 2 | 3 | 3 |
| Pump Speed (rpm) | 994 | 863 | 946 | 915 | 769 |
| Motor Power | 4 hp | 5.5 hp | 7.5 hp | 10 hp | 15 hp |
| Req'd Circuit | 10amp | 10amp | 20amp | 20amp | 32amp |
| Tank Volume | 125L | 150L | 250l | 300L | 400L |
| Noise Level | 81db | 82db | 87db | 87db | 87db |
| Outlet Size | 3/4" | 3/4" | 1" | 1" | 1" |
| Weight | 169kg | 217kg | 304kg | 388kg | 532kg |
| Dimensions (cm) | |||||
| Length | 148 | 149 | 154 | 185 | 192 |
| Width | 47 | 50 | 60 | 64 | 74 |
| Height | 91 | 103 | 112 | 121 | 137 |
