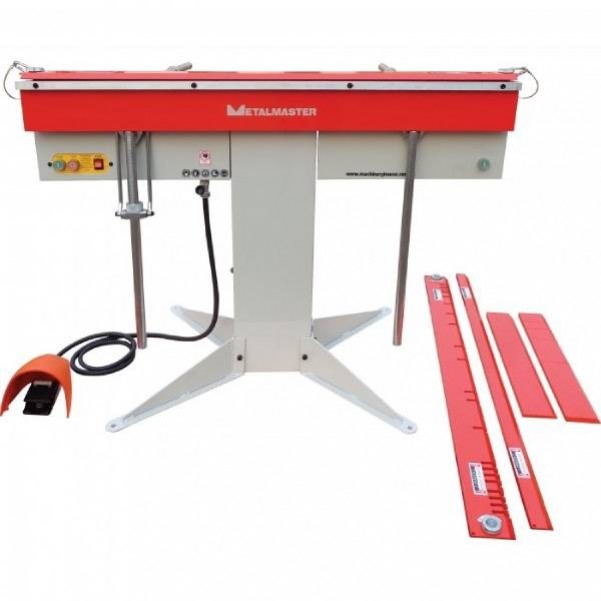

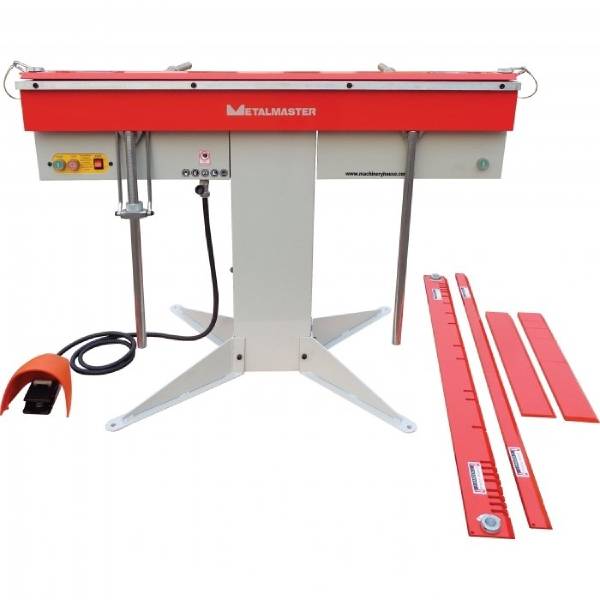

Hafco MB1250 - 1300 x 1.6mm Mild Steel Bending Capacity Magnetic Panbrake S542
Freight:
This is a heavy and large item. Freight cost might be vary from different locations. Please contact us by Email or phone us on (07) 3326 1555 for a accurate shipping quote and/or any special shipping arrangements you may require.
Delivery:
This heavy item is more than 220 kg, please make sure you have the lifting device to unload. Otherwise, please order a Hydraulic Tail Lift Service in the accessory section. Thanks.
Includes:
- Segmented clamp bars; 25, 37.5, 52.5, 70, 140 , 280 & 580mm lengths
- Standard clamp bar 1300mm long
- Slotted clamp bar 1300mm long
- Narrow clamp bar 1300mm long
Features:
- Electromagnetic rather than mechanical clamping

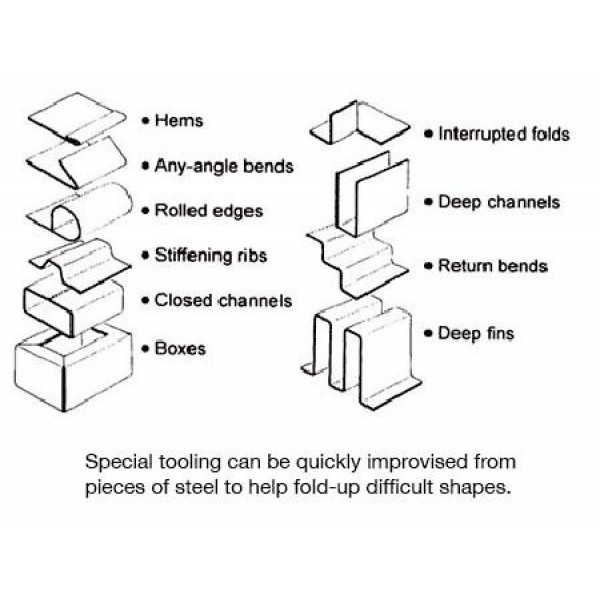

- Excellent design easy to use - forming deep channels and closed sections, deep boxes
- Much greater versatility than conventional sheet metal benders
- No limitation to depth of boxes
- Can form deep channels, and completely closed sections
- Automatic clamping and unclamping means faster operation, less fatigue
- Quick and accurate sliding angle guide on bending arm
- Infinite length bending in stages is possible
- Accurate and continuous indication of beam angle
- Open ended design allows folding of complex shapes
- Machines can be ganged end-to-end for long bending
- Adapts easily to customised tooling (clamp bars of special cross-sections)
- Includes foot control, full length narrow, slotted & segmented clamp bars
- Mild steel capacity is rated on hot rolled material with 250MPA
Specifications:
- Order Code: S542
- Model: MB1250
- Foot Control Fitted: Yes
- Mild Steel Capacity: 1.6mm
- Bending Length: 1300mm
- Voltage / Amperage: 240 / 10 (V / amp)
- Shipping Dimensions (L x W x H): 145 x 112 x 38 cm
- Nett Weight: 220 kg
